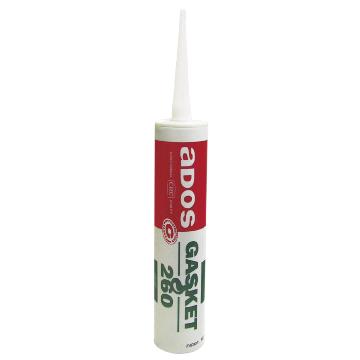

ADOS Red Gasket 260 300g

Self-Forming Hi Temp RTV Silicone Gasket

ADOS Red Gasket 260 is formulated for heavy duty, high
temperature applications with a continuous service temperature of
up to 260 degreesC.

ADOS Red Gasket 260 is a self-forming room temperature
vulcanising Silicone that replaces felt, cork, paper, asbestos and
rubber gaskets. No gasket sealers are required – the pure silicone
rubber forms to any size and shape quickly.

ADOS Red Gasket 260 resists migrating caused by thermal cycles,
cracking, shrinking and vibration. It is ideal for high
temperature, high pressure applications, it will remain flexible
and durable.

ADOS Red Gasket 260 is NOT recommended for use on copper and
brass. Do not use as a head gasket, not suitable for stove pipes or
in fireplaces.

Features and Benefits

• Continuous service temperature of up to 260 degreesC
• Makes any size or shape of gasket in minutes
• Ideal for high pressure high temperature applications
• Suitable for general machinery and automotive gaskets
• Resists cracking, shrinking and vibration
• Easy to apply

Uses

• Valve rocker cover
• Timing chain cover
• Thermostat housing
• Transmission pan
• Side cover plate
• Water outlet/inlet
• Water pump cover gasket
• Intake manifold
• Oil pan corner seals
• Sumps
• Differential cover

Specifications:

Physical Properties and Performance Characteristics

Composition	Silicone polymer
Curing Method	Acetoxy
Colour	Red
Continuous Service Temperature	Up to 260 degreesC
Intermittent Temperature	Up to 340 degreesC
Hardness (Shore A)	= 18
Tensile Strength	= 1.2 N/mm2
Elongation at Break	= 300%
Elastic Recovery	100%
Shrinkage	1%
Toxicity / Staining	Non-toxic when cured / None
Tack Free Time	= 30 minutes
Through Cure	24 hours (3mm bead @ 25 degreesC/50% RH)
